Description

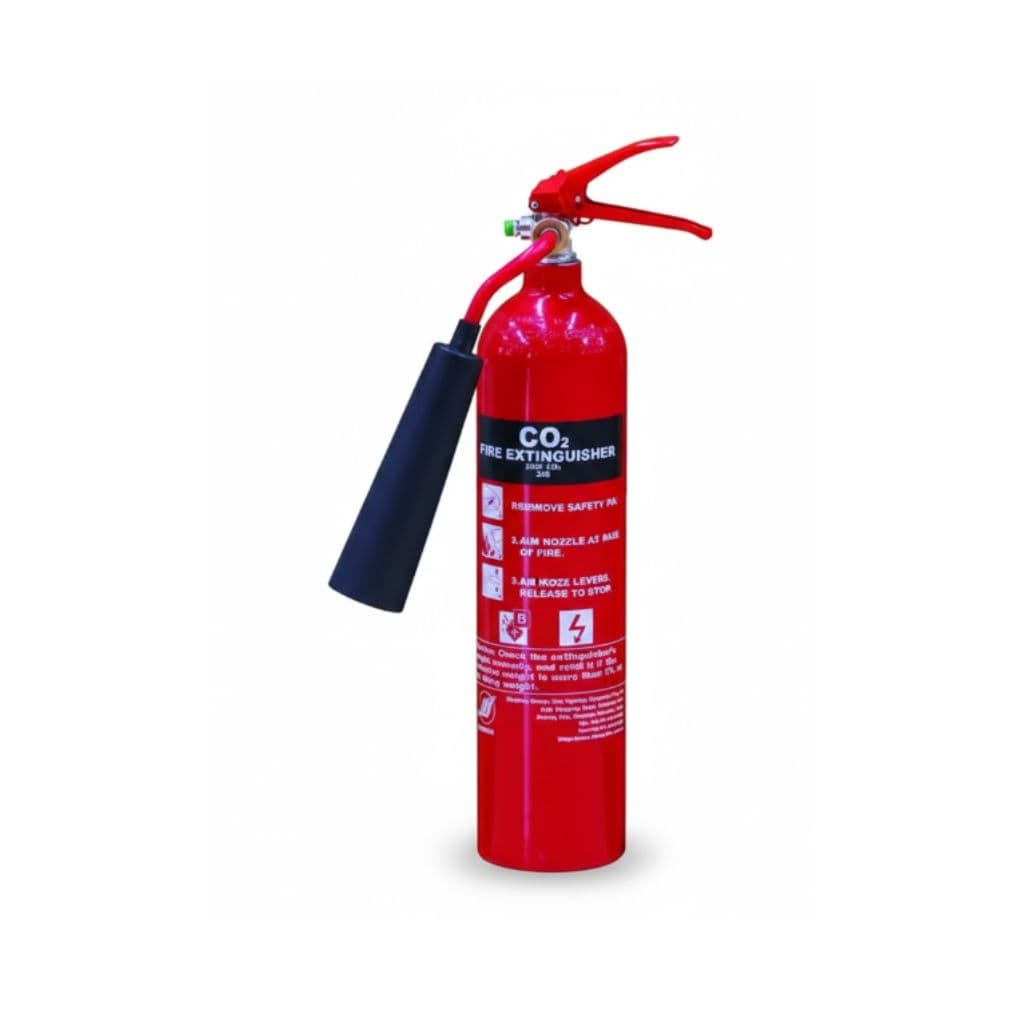

CO2 Fire Extinguishers are the premier solution for suppressing fires in environments containing sensitive electronic equipment and flammable liquids. Utilizing high-pressure carbon dioxide gas, these units extinguish flames by displacing oxygen and providing a localized cooling effect without leaving any chemical residue or moisture behind.

Key Features

• Residue-Free Agent: Discharges pure $CO_2$ gas that evaporates completely, making it ideal for protecting high-value assets and electronics.

• Durable Construction: Cylinders are manufactured from high-strength CK45 carbon steel or lightweight 34CrMo4 alloy steel with a UV-resistant polyester powder coating.

• High-Pressure Valve Assembly: Equipped with CE-approved brass valves and safety release discs to manage internal pressures effectively.

• Non-Conductive Discharge: Features specialized frost-free horns or hoses designed to protect the operator while safely targeting electrical fires.

Technical Highlights

• Capacity Range: Portable (2kg, 3kg, 5kg, 6kg, 7kg, 9kg) and Wheeled (10kg, 20kg, 25kg, 30kg, 50kg).

• Operating Pressure: Working pressure of 174 bar with a test pressure of 250 bar.

• Temperature Resilience: Rated for effective operation in temperatures ranging from -20°C to +60°C.

• Fire Ratings: Capacities achieve ratings from 34B (2kg) up to 233B (50kg wheeled units).

Standards & Compliance All units are produced under ISO 9001 quality management systems and designed in accordance with GB4351-2023. Available certifications include EN3, CE (PED), UL 154, and MED for maritime applications.

Typical Applications These extinguishers are essential for server rooms, data centers, laboratories, telecommunication hubs, industrial CNC machine shops, and marine engine rooms where clean suppression is mandatory.
